RADICON

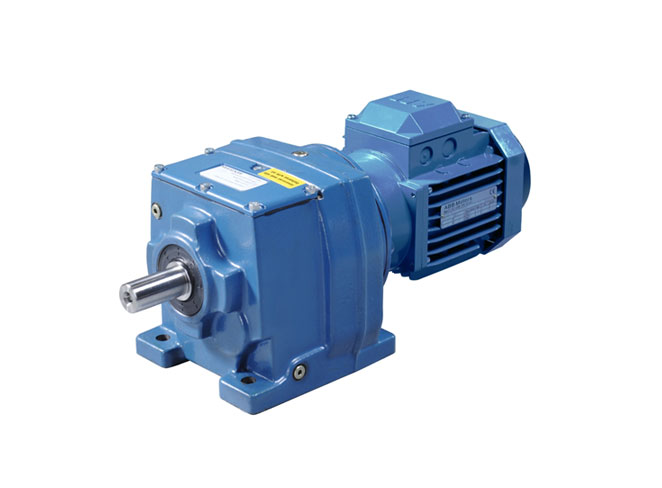

Series M Helical Inline Geared Motor
Series M helical inline geared motors and reducers provide a very efficient and compact drive solution to meet most requirements.
| Unit Sizes | 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 13, 14, 16 |
| Types | Inline unit: Double, Triple, Quadruple and Quintupple reduction |
| Input Power | Up to 150 HP (160 kW) |
| Output Torque | Up to 183,000 lb.in (20,700 Nm) |
| Gear Ratios | 3.6/1 to 200/1 up to Triple reduction and up to 10,000/1 in combined unit |
| Motor Sizes | NEMA Frames from 56 to 440, IEC Frame 56 to 315 |
Series M helical inline geared motors and reducers provide a very efficient and compact drive solution to meet your requirements.
The Series M geared motor range meets most drive requirements up to 214HP with a maximum output torque of 177,000 lb.in.
It takes advantage of being developed from many years of accumulated design expertise, together with the use of high quality materials and components.
The end result is a series of speed reducing and geared motors offering high load carrying capacity, high efficiency, quiet running and reliability. These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.
Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot mount execution. Available as motorised, motor ready (to accept clients own NEMA/ IEC motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.
Features Benefits Accepts standard C-face NEMA and IEC motors Fast and low cost motor replacements readily available Dimensionally Interchangeable with the market leaders No modification required when replacing existing gear unit High ratio combinations in double reductions Saves cost and efficiency Motors fitted without modification Saves time when replacing failed motors Oil tight gear head Enables motor removal without oil spillage Wide range of ratios Comprehensive range of speeds available

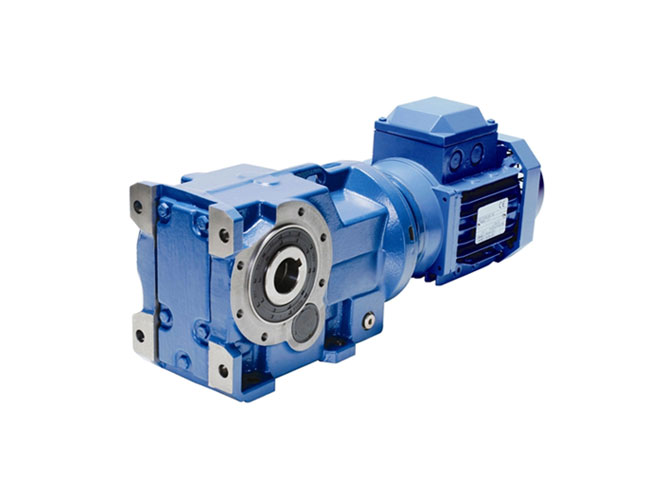

Series K Helical Bevel Geared Motor
Series K – Right angle helical bevel geared motors have high load carrying capacities, increased efficiency over worm units, quiet running and reliability.
| Unit Sizes | 03, 04, 05, 06, 07, 08, 09, 10, 12, 15, 16, 18 |
| Input Power | Up to 150 HP (160 kW) |
| Output Torque | Up to 292,000 lb.in. (33,000 Nm) |
| Gear Ratios | Up to 125/1 in triple reduction and upto 7,100/1 in Combined Unit |
| Motor Sizes | NEMA Frames from 56 to 440. IEC Frames from 63 to 315. |
Series K – Right angle helical bevel geared motors have high load carrying capacities, increased efficiency over worm units, quiet running and reliability.
The Series K geared motor is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts, also available with hollow shaft.
Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket.
These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.
Can be supplied as triple and quintuple reduction units in flange, foot or shaft mount execution. Available as motorised, motor ready (to accept clients own IEC/ NEMA motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.
| Features | Benefits |
|---|---|
| Accepts standard NEMA/IEC motors | Fast and low cost motor replacements readily available |
| Dimensionally Interchangeable with the market leaders | No modification required when replacing existing gear unit |
| Highly efficient right angled drive | Saves energy and running costs |
| Motors fitted without modification | Saves time when replacing failed motors |
| Oil tight gear head | Enables motor removal without oil spillage |
| Versatile mounting | Shaft mounting or foot mounting with same gearbox |
| Wide range of ratios | Comprehensive range of speeds available |

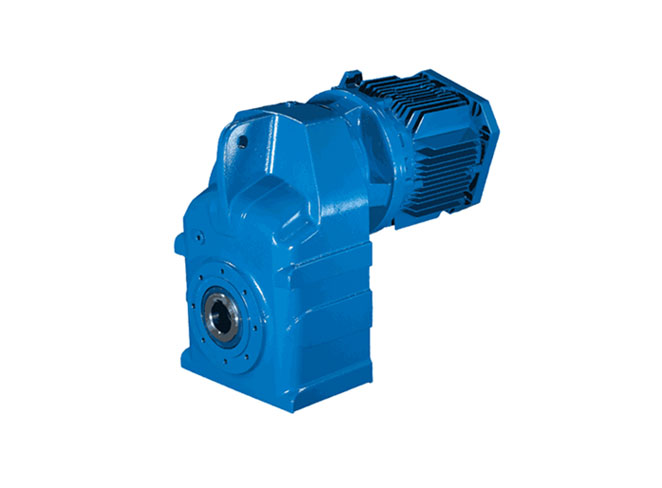

Series F Shaft Mounted Helical Geared Motor
Series F geared motors and reducers form part of a shaft-mounted unit solution along with our integral torque reaction bracket.
| Unit Sizes | 02, 03, 04, 05, 06, 07, 08, 09, 10 |
| Input Power | Up to 50 HP (45 kW) |
| Output Torque | Up to 71,000 lb.in (8,000 Nm) |
| Gear Ratios | From 6.3/1 to 360/1 up to Triple reduction and up to 3600/1 in combined unit |
| Motor Sizes | NEMA frames from 56 to 440 and IEC Frames from 63 to 315. |
Series F geared motors and reducers offer a shaft mounted solution with an integral torque reaction bracket.
The units are also available with rubber torque bushings, output flanges, shrink disc bores, solid output shafts and KIBO® sleeves to allow for trouble free maintenance.
These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.
Can be supplied as double, triple, quadruple and quintuple reduction units in flange or shaft mount execution. Available as motorized, motor ready (to accept clients own NEMA/ IEC motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.
| Features | Benefits |
|---|---|
| Accepts standard NEMA/IEC motors | Fast and low cost motor replacements readily available |
| Dimensionally Interchangeable with the market leaders | No modification required when replacing existing gear unit |
| High ratio combinations in double reductions | Initial purchase price cost savings and energy efficiency savings |
| Motors fitted without modification | Saves time when replacing failed motors |
| Oil tight gear head | Enables motor removal without oil spillage |
| Versatile mounting | Shaft mounting or foot mounting with same gearbox |
