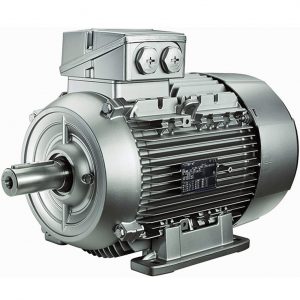

3 PHASE ALUMINIUM FRAME MOTORS
PRODUCT OVERVIEW
Light Weight Three Phase, enhanced performance cast aluminum IEC Frame with Design B torque Characteristics, features a multi mount arrangement incorporating bolt on feet with flange mount configurations available 2, 4, pole, 0.12 kW to 7.5kW, ideal applications include packaging, conveyer , blower, etc.
STANDARD FEATURES
֍ Removable Feet F1, F2, F0 Field Convertible (Standard F0).
֍ 1.07 Service Factor with 50Hz. Operation /1.27 Service Factor with 60Hz.
֍ 24 Month Warranty on Manufacturing defects.
֍ Conduit Box is 90º rotatable
֍ Cast Aluminium Construction with cast Aluminium B5/B14 and Flange Mounts.
֍ Standard B3 Foot Mount or B5/B14 round body.
֍ Class i, Division II, Groups A,B,C and D compliant
֍ Anti- Microbial (Tropicalized) on the stator winding.
֍ 1045 Steel Shaft.
֍ Sheilded Bearing
֍ Class F Insulation
֍ Surface Finish:
– Alkyl Enamel RAL 9007 – Aluminum Grey
– Black Oxide Surface treatment for increased corrosion resistance.
֍ Corrosion Resistant Hardware.
֍ Metric Threaded Cable Gland included with motors.
OPERATION PARAMETERS
֍ Continuous Duty (S1)
֍ Ambient Temperature 55ºC
֍ Installation up to 100 MASL
CONNECTION
֍ Motors Fitted with standard IEC marked Terminal block.
֍ Dual Rated motors pre-wired for High Voltage.
INSULATION AND INVERTERS RATING
֍ Class F Insulation
֍ Designed to Class B Temperature Rise
֍ Vacume Impregnated
֍ Inverter Rated 4:1 Constant Torque, 10:1 Variable Torque (1.0 SF on VFD) Power per NEMA MG 1 Part 30 Standard.
INGRESS PROTECTION
The standard degree of enclosure protection is IP55 (increased IP protection is available). Both drive end and non-drive end are fitted with double lip oil seals, including a rubber shaft slinger on the drive end. Terminal box is double gasketed including nipple seals between conduit box and stator body. DE and NDE end bell fitted with sintered brass one-way drain.
